YBD-YF Series 140W 20Gbps USB-C Cable Family

Compare YBD-YF USB-C straight, spring and extension-cable variants, the separate adapter, listed 140W, 20Gbps and 8K60Hz capabilities, and evidence gaps.

Request a Quote Request Sample

Buyer fitUSB-C accessory importers, computer-accessory distributors, dock brands and OEM buyers

Buying taskCommercial evaluation of a high-power full-function USB-C cable family by exact model

Evidence gateSupplier listing captured; exact model, connector, USB4 protocol, power, data, video, charging-protocol, certification and commercial evidence pending

Yellow coiled USB-C male-to-male cable with 20Gbps markings on the connector housings — Spring-cable product viewSupplier image · evidence pending

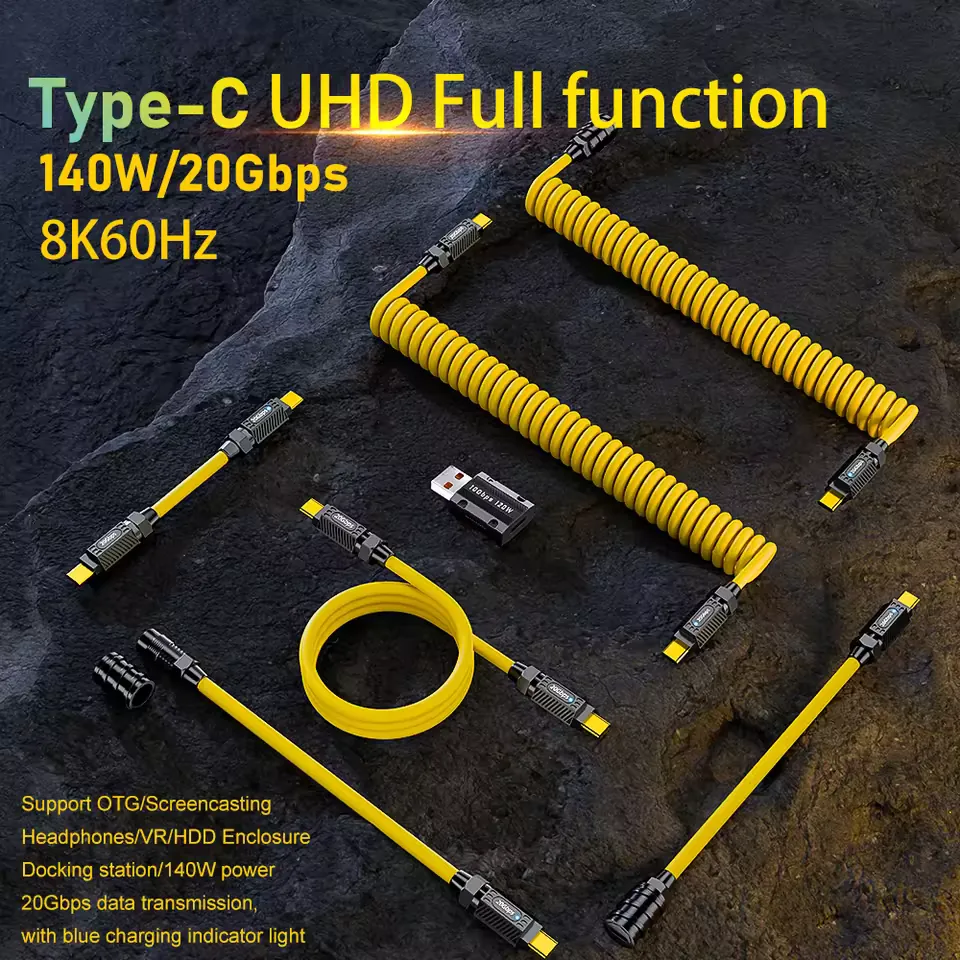

Supplier image showing the yellow USB-C cable family and listed 140W 20Gbps and 8K60Hz functions — Listed cable-family functions

Supplier illustration of the listed 8K at 60Hz display function — Listed cable display function

Power

140W listed

Data

20 Gbps listed

Display

8K / 60Hz listed

Choose the exact build

One listing, five distinct formats

Start with the model and connector. Performance claims are not automatically interchangeable between cables, extensions and the adapter.

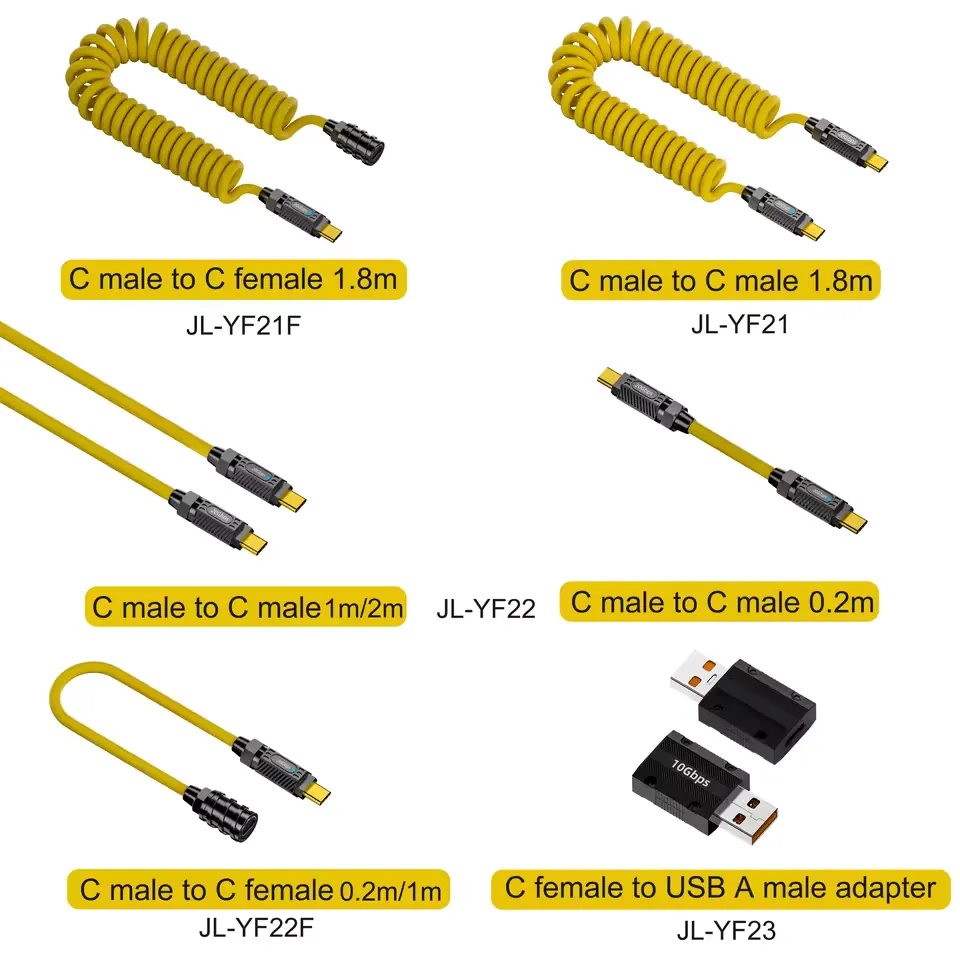

Supplier model matrix showing USB-C male and female straight and spring cable variants plus a USB adapter

Supplier model map · verify before order

YBD-YF21

Spring cable

Connector: USB-C male to male
Length: 1.8 m

Cable-family claims: 140W · 20Gbps · 8K60Hz

YBD-YF21F

Spring extension

Connector: USB-C male to female
Length: 1.8 m

Confirm pass-through behavior by sample

YBD-YF22

Straight cable

Connector: USB-C male to male
Length: 0.2 / 1 / 2 m

Cable-family claims: 140W · 20Gbps · 8K60Hz

YBD-YF22F

Straight extension

Connector: USB-C male to female
Length: 0.2 / 1 m

Confirm pass-through behavior by sample

YBD-YF23

Compact adapter

Connector: USB-A male to USB-C female
Length: Adapter

Separately listed: 120W · 10Gbps; video unclear

Supplier-listed performance

Three capabilities. Three evidence checks.

Use these figures to shortlist the product—not as final compliance proof.

Supplier image showing the listed 140W cable family

Power

Up to 140W

Cable family lists 28V/5A. Confirm E-marker, charging profile and exact model.

Data

Up to 20Gbps

Cable family claim only. USB4 protocol compliance and test report remain pending.

Display

Up to 8K60Hz

Confirm source, display, mode, cable length and validation record.

Source-mapped product data

Supplier listing snapshot

Four facts for initial review. Verify the selected SKU before quotation.

Key listing facts

Connectors: USB4 connector — protocol compliance evidence pending
Cable lengths: 0.2 m; 1 m; 1.8 m; 2 m — availability depends on model
Brand name: YBD Global
Model numbers: YBD-YF21; YBD-YF21F; YBD-YF22; YBD-YF22F; YBD-YF23

View complete supplier attribute record 19 additional fields

Listing title: 8K UHD Type-C Cable, 140W, 20Gbps, 8K 60Hz and adapter-cable family
Product name: 8K60Hz Type-C UHD cable
USB type: Type-C to Type-C
Listed cable models: YBD-YF21: USB-C male-to-male spring cable, 1.8 m; YBD-YF21F: USB-C male-to-female spring cable, 1.8 m; YBD-YF22: USB-C male-to-male straight cable, 0.2/1/2 m; YBD-YF22F: USB-C male-to-female straight cable, 0.2/1 m
Listed adapter model: YBD-YF23: USB-A male to USB-C female adapter
Cable-family function: Up to 28V/5A, 140W, 20 Gbps and 8K60Hz — model-level evidence pending
Adapter-family function: 120W and 10 Gbps are listed separately; video support is not clearly specified
Function attribute: 5A Fast Charging; 140W; 20Gbps; 8K60Hz
Type: USB Cable; type-c usb cable; Adapter Cable; USB Cable for iPhone; Fast charging cable
Material: Aluminum; aluminum alloy; silicone; zinc alloy
Jacket: Pseudo silicone
Use: MP3/MP4 player; video-game player; mobile phone; computer; multimedia; Android; iOS; tablet; power bank; earphone
Private mold: Yes
Color / variants: Yellow male-to-male; yellow male-to-female; yellow spring-cable male-to-male; yellow spring-cable male-to-female
Packing: Polybag
Logo: Customized OEM logo listed
Warranty: 12 months — policy pending
Certification listings: FCC; RoHS; CE; EN 55032 — exact model scope and documents pending
Source boundary: The listing combines multiple cable and adapter models; capability must be confirmed against the ordered model before quotation

Packaging and delivery

Two commercial checks

Listing price / MOQ snapshot: US$3.60–5.60; minimum order 100 pieces — reconfirm by quotation
Lead time: 1–10 pieces: 7 days — current quotation confirmation required

View complete logistics record 5 additional fields

Selling units: Single item
Single package size: 16 × 8 × 2 cm
Single gross weight: 0.099 kg
Packaging customization: From +US$0.30/piece; minimum 500 pieces — reconfirm by quotation
Lead time: over 10 pieces: To be negotiated

Publication gate

Power, current, data behavior, material, compliance, MOQ, price, warranty and customization must be confirmed against the selected sample, SKU records and current quotation.
